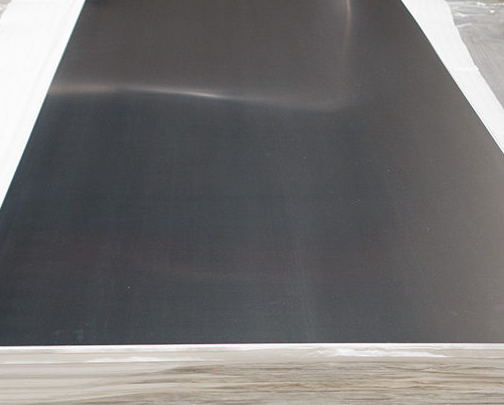

3004 Aluminum Sheet

Our company specialized in aluminum coil /sheet/foil product

  • 3004 aluminum sheet

3004 Aluminum Sheet

Thickness:0.2-7.0 mm


Length:Less than 6000mm or customized

Weight:0.5-7.0 tons per pallet or customized


Reflective rate:0.2-7.0 mm

Surface treatment:Mill finished and silvery aluminum

specification or package can be produced as your request.


3004 aluminum is a kind of AL-Mn alloy, which is the most extensively used anti-rust aluminum. 3004 aluminum sheets are non-heat treatable, so the mechanical property is improved by cold processing: it has high plasticity at annealed condition, good plasticity when semi-cold hardening, while low plasticity during cold hardening. It has good corrosion resistance, excellent weldability, but poor machinability. It is mainly used on low load parts working in liquid or gas and require high formability and weldability, such as oil tank, gasoline or lubricate pipe, liquid container, and other low load parts made by deep drawing. Wire rods are used to make rivets.



 Alloys Number Temper Thickness







Aluminum Sheet/Plate


3004 O,H12,H14,H16H18,H19,H22,H24
0.2-7.0 100-2200 600-6000 Heat sink, ship materials, LCD back plane materials


3004 aluminum sheets are mainly used in chemical production and storage devices, sheet workpieces, building materials, construction baffles, cable ducts, sewers, parts in lamps, beverage cans, corrugated boards, color aluminum sheets, sockets.

It can also be applied to parts or components that require high formability and corrosion resistance, such as kitchenware, storage units for food or chemical products, troughs or tanks for liquid transportation products, pressure vessels or pipes, cooling fins, make-up boards, photocopier rollers, or ship materials.


1)3004 aluminum sheets have good formability, solubility, and corrosion resistance.

2)Excellent forming processing characteristics; high weldability and conductivity,  higher strength than 3003 aluminum sheet.

3)The surface is smooth,  and it can work well under pressure;

Packing & Transportation Details:

1) Interleave paper between each sheet. (Optional for Cold Rolled Sheet).

2) Plate/coil is placed to the iron or wooden pallet, wrapped by water-proof craft paper and fixed by iron belt.

3) Port: Qingdao port or other main ports in China

4) Container: 20ft GP:5898mm (Length)x2352mm (Width)x2393mm (Height), loading 18~25 tons.

40ft GP:12032mm (Length)x2352mm (Width)x2393mm (Height), loading 20~28 tons.
